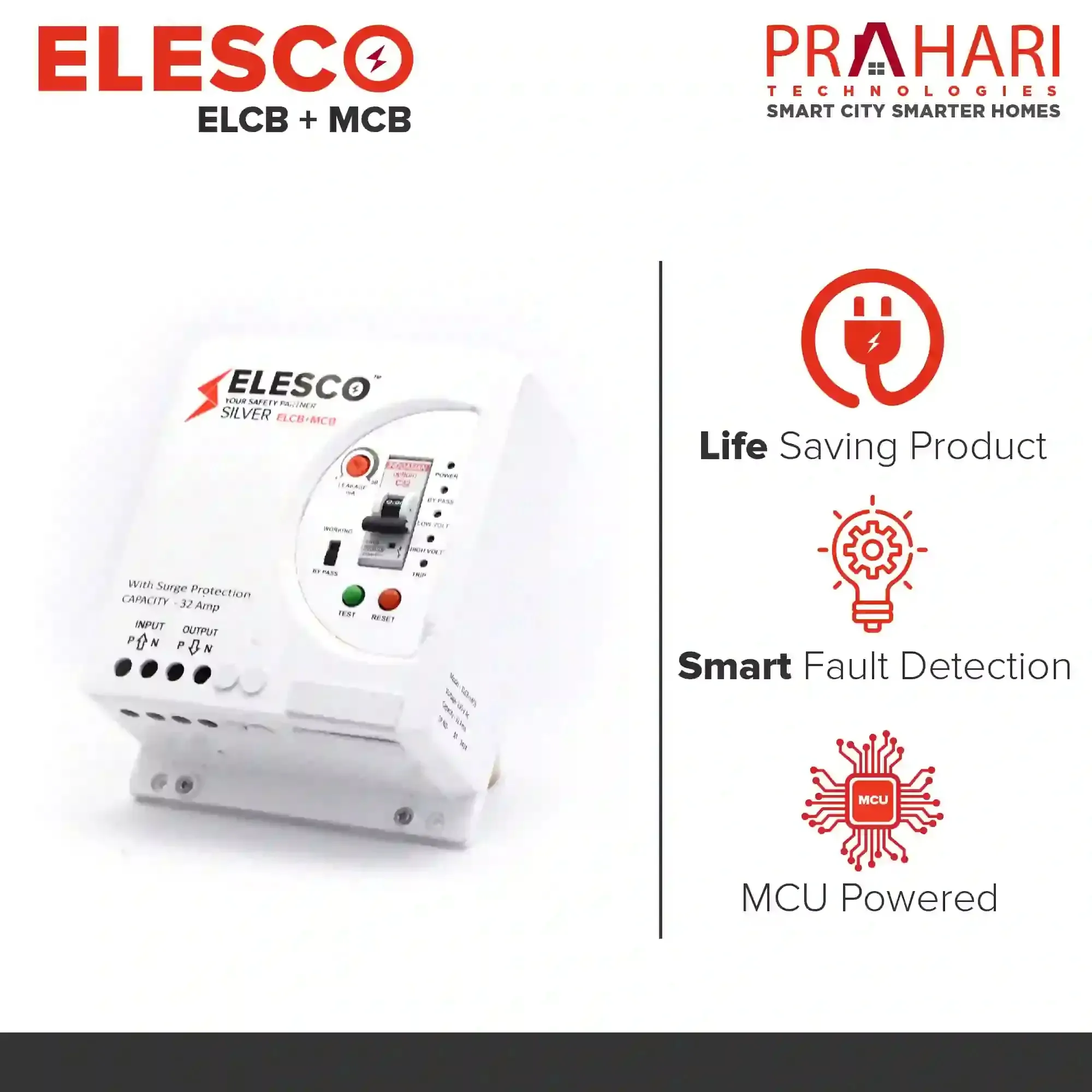

Elesco Stands for Electrical Safety Circuit Operator. Elesco ELCB is Life Saving Hack.Elcb means Earth Leakage Circuit Breaker, which is mainly used for sensing earth leakage. Elcb can save your and your loved one’s live by tripping light connection if anyone get shocked. Elcb is also sensitive to earth fault and any other wiring faults exisiting in premises. Prahari’s Elcb are working with microcontroller based technology which makes them more accurate to faults. Elesco Elcb are comes with 0-50mA Adjustable Leakage Current in case any untraced current or minor leakage in other elcb cant be handled. Elesco has also bypass button as it is required when in emergency electricians are not timely available.

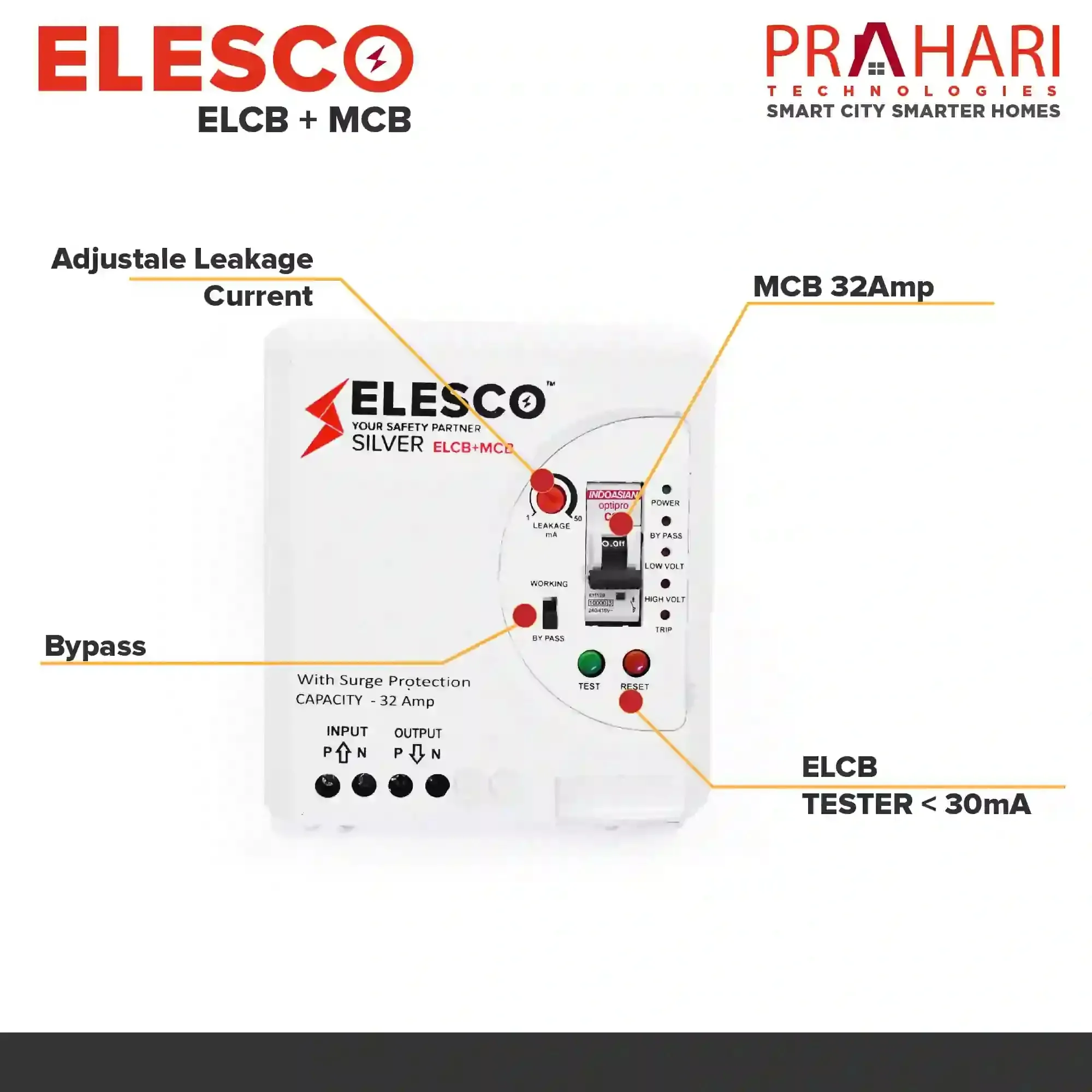

Features Of Product
- Detects Earth Leakage Current upto 0-50mA
- ISI Marked 32A MCB

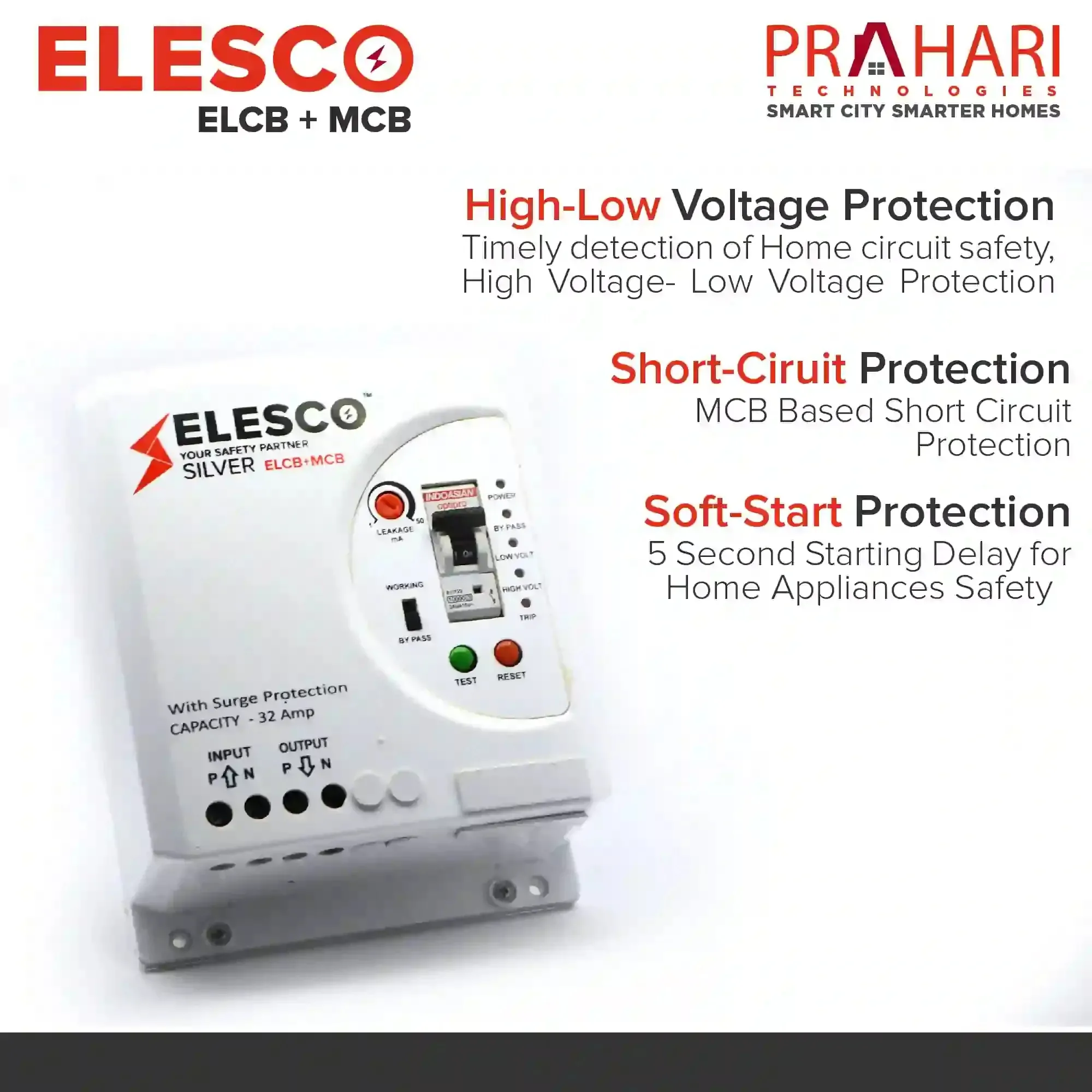

- Hight-Low Voltage Protection
- 5 Sec Delay ON Protection
- Short Circuit Protection
Product Specification
| Type | Description |
|---|---|
| Working Voltage | 230V AC |
| Max Current | 32A |
| Protection | High-Low Voltage |
| Leakage Current | 0-50mA Adjustable |
| Start Delay | 5 Sec |
| Bypass Feature | Available |

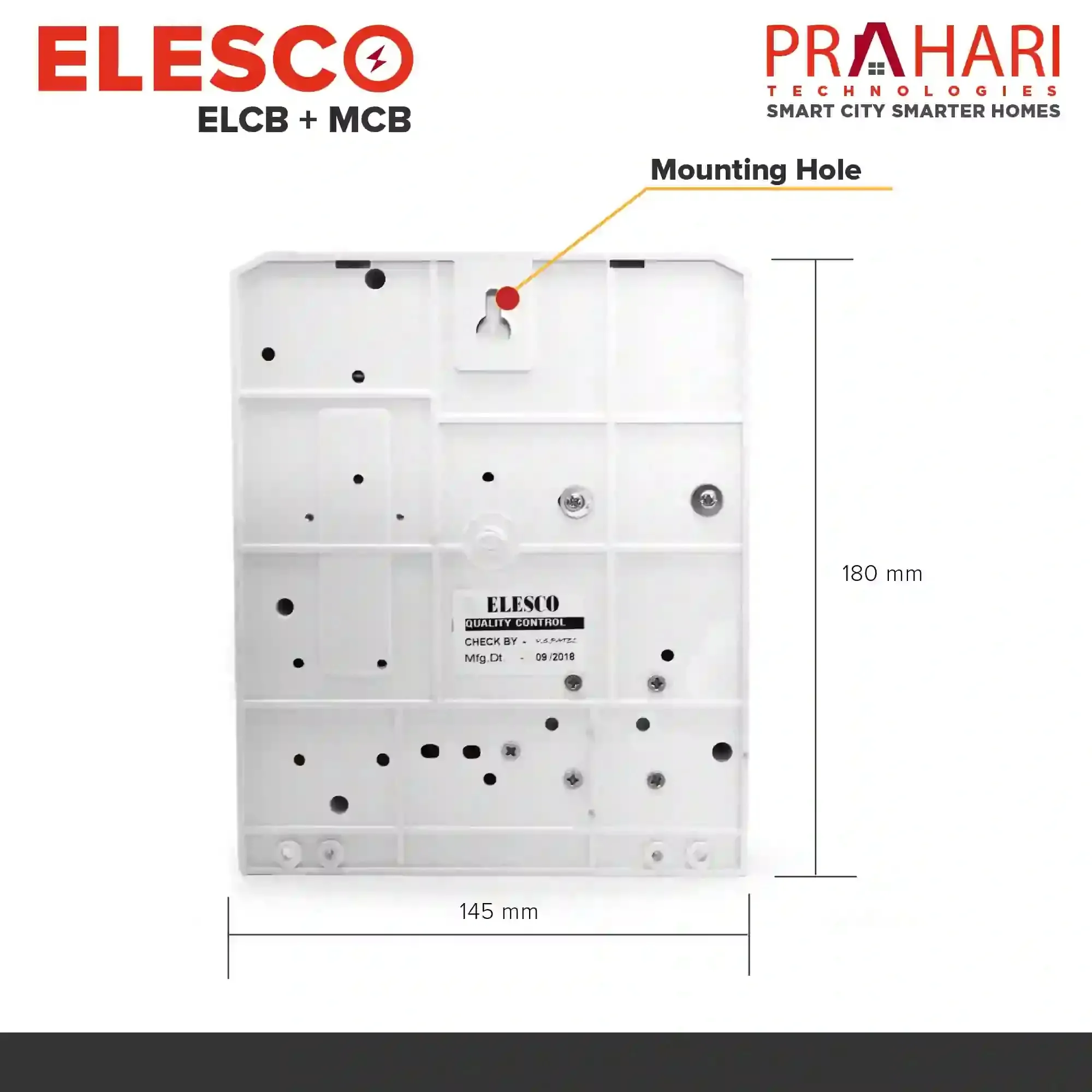

| Installation | Wall-mounted |
| Temperature | -10℃～+55℃ |
| Humidity | ≤95%RH (no condensation) |
| Net Weight | 650g |
| Warranty | 1 Year |
Tips For Safety
Dont Use Frequent Bypass Switch as Bypassing Security for Too Long make More Threat as the Longer the Fault Exist Most the Risk Would Be.
